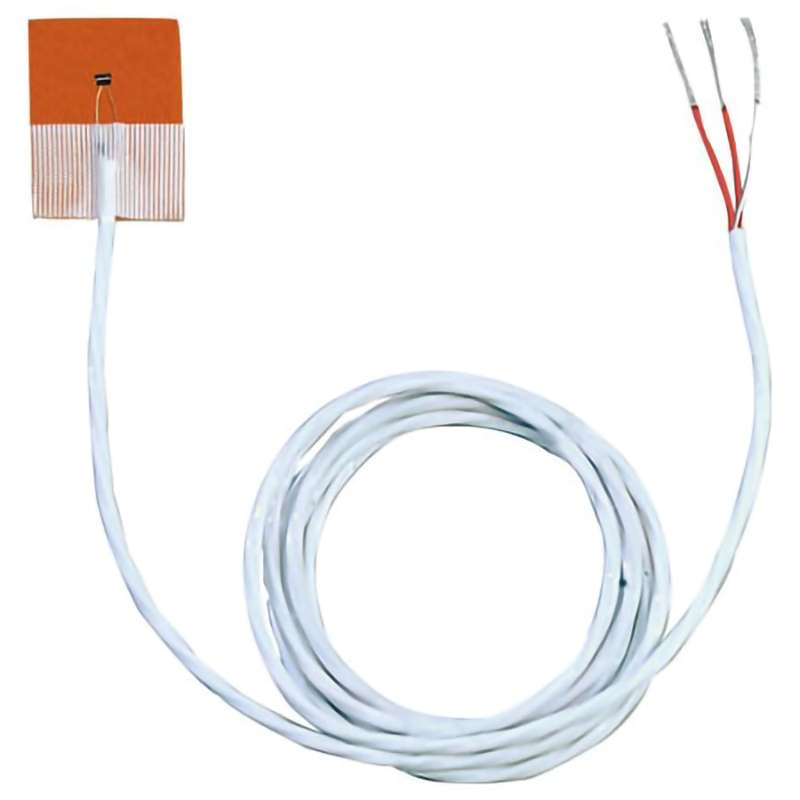

RTD Surface Sensor, Self-Adhesive, Fast Response, -73 C to 260 C, +/- 0.15 C Accuracy, 3 Wires, C
Hisco #:SA1-RTD-37300
MFG #:SA1-RTD
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 129.01 | |
| 3 | 124.63 | Save |
The Omega SA1-RTD
Surface-mount RTD temperature sensor mounts on flat or curved surfaces and provides Class A accuracy for critical temperature monitoring applications. Based on a 2 x 2 x 0.8 mm thin-film platinum RTD and supplied with bare 3-wire leads as a standard configuration (connector optional), itcan be customized for use in a wide variety of applications. The sensor can be easily applied with its selfadhesive backing, or positioned permanently with OMEGABOND™ cements.
Use the SA1-RTD to monitor chip, heat sink, and environmental temperatures in electronic devices; check piping or ducting temperatures;monitor motor and transformer core heat; test insulation capabilities; and check other applications in which surface and/or gradient temperatures need to be monitored or controlled.
RTD Surface Sensor, Self-Adhesive, Fast Response, -73 C to 260 C, +/- 0.15 C Accuracy, 3 Wires, Class A DIN Platinum, 100 Ω, Stripped Leads, PFA, 40"Product Description
The Omega SA1-RTD
Surface-mount RTD temperature sensor mounts on flat or curved surfaces and provides Class A accuracy for critical temperature monitoring applications. Based on a 2 x 2 x 0.8 mm thin-film platinum RTD and supplied with bare 3-wire leads as a standard configuration (connector optional), itcan be customized for use in a wide variety of applications. The sensor can be easily applied with its selfadhesive backing, or positioned permanently with OMEGABOND™ cements.
Use the SA1-RTD to monitor chip, heat sink, and environmental temperatures in electronic devices; check piping or ducting temperatures;monitor motor and transformer core heat; test insulation capabilities; and check other applications in which surface and/or gradient temperatures need to be monitored or controlled.
RTD Surface Sensor, Self-Adhesive, Fast Response, -73 C to 260 C, +/- 0.15 C Accuracy, 3 Wires, Class A DIN Platinum, 100 Ω, Stripped Leads, PFA, 40"Technical Information
