RT Series Pico Tip, Chisel, 1.0mmx0.3mm
Hisco #:T0050104399-12200
MFG #:T0050104399
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 46.50 | |
| 10 | 45.34 | Save |
| 30 | 44.24 | Save |

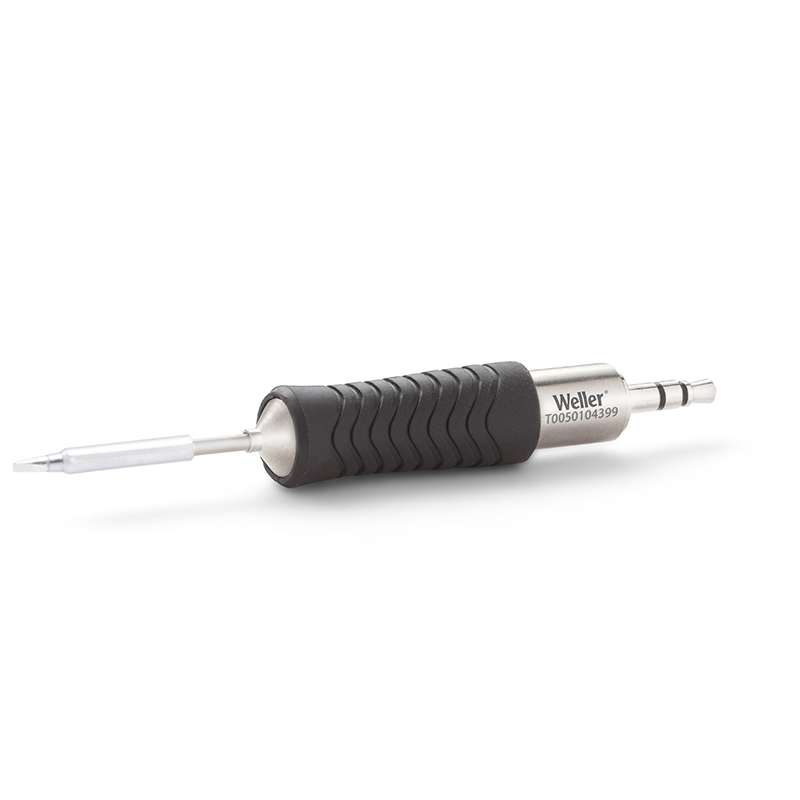

The Weller T0050104399 is a pico chisel tip designed for ultra-fine work for the smallest micro components. The tip comes equipped with an elevated ergonomic soft grip. It’s the only soldering tip in the market which combines tip and grip in a single unit. These chrome, high-powered active tips have excellent heat transfer & sensor, excellent reaction time and an easy connect system for easy tip change.
Weller T0050104399 Features:- Digital tool for data storage, motion activated usage sensor for energy control and data storage
- Patented tip & grip design, tips can be changed without a tool
- 20% faster tip change than leading competitors
- Solder tips have excellent heat transfer, no downtime, continuing workflow
- High performance active tip for smallest precision soldering applications (Aerospace, Military (only MS versions), Electronics, Sensors, Medical devices, Automotive)
- Short tip-to-grip distance, close working distance to the component for higher precision and maximum control
- ESD safe: on
- WX compatible: on
- Width in mm: 1
- Width in inches: 0.039
- Thickness in mm: 0.3
- Thickness in inches: 0.012
- Length in mm: 17
- Length in inches: 0.669
- Tip Type: HM
- Power: 40 W
- Tip Diameter: 2.4mm
- Active Tip: on
- Tip Finder size range: 0.4 - 1.0 mm
Product Description
The Weller T0050104399 is a pico chisel tip designed for ultra-fine work for the smallest micro components. The tip comes equipped with an elevated ergonomic soft grip. It’s the only soldering tip in the market which combines tip and grip in a single unit. These chrome, high-powered active tips have excellent heat transfer & sensor, excellent reaction time and an easy connect system for easy tip change.
Weller T0050104399 Features:- Digital tool for data storage, motion activated usage sensor for energy control and data storage
- Patented tip & grip design, tips can be changed without a tool
- 20% faster tip change than leading competitors
- Solder tips have excellent heat transfer, no downtime, continuing workflow
- High performance active tip for smallest precision soldering applications (Aerospace, Military (only MS versions), Electronics, Sensors, Medical devices, Automotive)
- Short tip-to-grip distance, close working distance to the component for higher precision and maximum control
- ESD safe: on
- WX compatible: on
- Width in mm: 1
- Width in inches: 0.039
- Thickness in mm: 0.3
- Thickness in inches: 0.012
- Length in mm: 17
- Length in inches: 0.669
- Tip Type: HM
- Power: 40 W
- Tip Diameter: 2.4mm
- Active Tip: on
- Tip Finder size range: 0.4 - 1.0 mm
