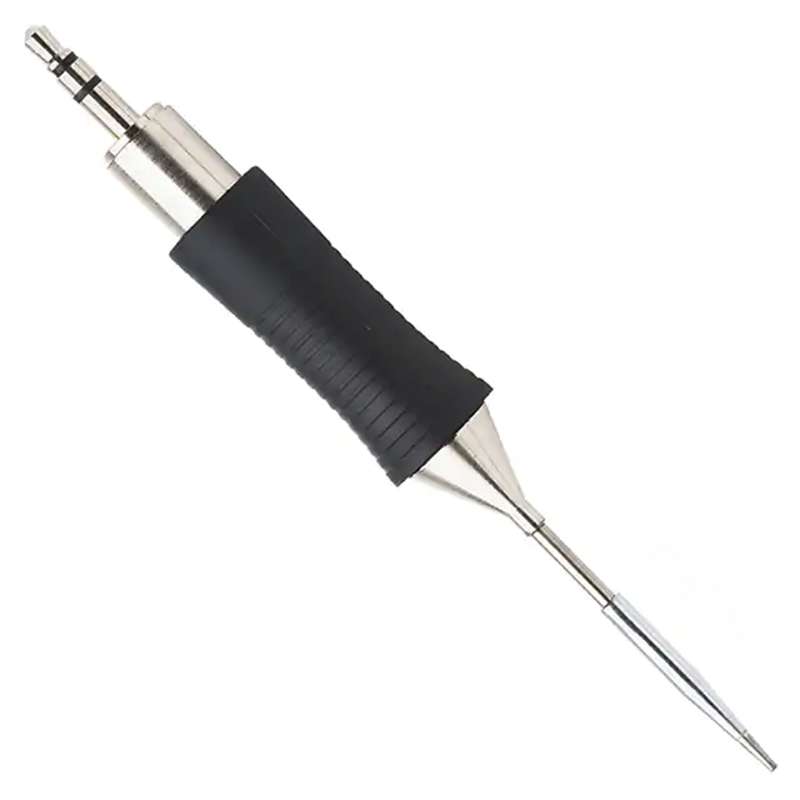

RT Micro Series Conical Soldering Tip for WMRP/ WXMP MS Iron, 0.1mm
Hisco #:T0054462571N-12200
MFG #:T0054462571N
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 58.63 | |
| 88 | 57.17 | Save |
| 264 | 55.77 | Save |
The Weller T0054462571N is a RT micro soldering tip designed for ultra-fine work, that comes equipped with an elevated ergonomic soft grip. It’s the only soldering tip in the market which combines tip and grip in a single unit. These chrome not wettable, high-powered active tips have excellent heat transfer & sensor, excellent reaction time and an easy connect system for easy tip change.
Weller T0054462571N Features:- Covers the widest range of geometries and sizes
- MIL-SPEC / IPC standard (potential free, MS versions)
- Versatile performance for micro and standard components covering the widest range of applications (aerospace, military (only MS versions), electronics, sensors, medical devices, automotive)
- RT Micro Soldering Tips for WXMP / WXMP MS Soldering Pencils
- High performance active tips for micro and standard components
- Tip Shape: Conical
- Tip type: MS
- Width in mm: 0.1
- Width in inches: 0.004"
- Length in mm: 20
- Length in inches: 0.787"
- Diameter: 3.4mm
- Active Tip: on
- Mil-Spec: on
- For use with: WXMP MS, WMRP MS
- Tip Finder size range: 0.1 - 0.4 mm
- Trident Export: on
Product Description
The Weller T0054462571N is a RT micro soldering tip designed for ultra-fine work, that comes equipped with an elevated ergonomic soft grip. It’s the only soldering tip in the market which combines tip and grip in a single unit. These chrome not wettable, high-powered active tips have excellent heat transfer & sensor, excellent reaction time and an easy connect system for easy tip change.
Weller T0054462571N Features:- Covers the widest range of geometries and sizes
- MIL-SPEC / IPC standard (potential free, MS versions)
- Versatile performance for micro and standard components covering the widest range of applications (aerospace, military (only MS versions), electronics, sensors, medical devices, automotive)
- RT Micro Soldering Tips for WXMP / WXMP MS Soldering Pencils
- High performance active tips for micro and standard components
- Tip Shape: Conical
- Tip type: MS
- Width in mm: 0.1
- Width in inches: 0.004"
- Length in mm: 20
- Length in inches: 0.787"
- Diameter: 3.4mm
- Active Tip: on
- Mil-Spec: on
- For use with: WXMP MS, WMRP MS
- Tip Finder size range: 0.1 - 0.4 mm
- Trident Export: on
